E-Syn and E-morphic

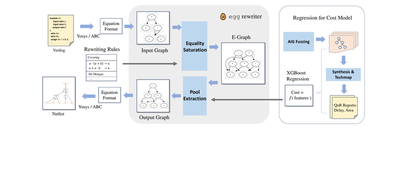

Logic synthesis plays a crucial role in the digital design flow. It has a decisive influence on the final Quality of Results (QoR) of the circuit implementations. However, existing multi-level logic optimization algorithms often employ greedy approaches with a series of local optimization steps. Each step breaks the circuit into small pieces (e.g.,k-feasible cuts) and applies incremental changes to individual pieces separately. These local optimization steps could limit the exploration space and may miss opportunities for significant improvements. To address the limitation, we propose E-Syn, which makes use of the well-established e-graph infrastructure to efficiently perform logic rewriting. It explores a diverse set of equivalent Boolean representations while allowing technology-aware cost functions to better support delay-oriented and area-oriented logic synthesis.

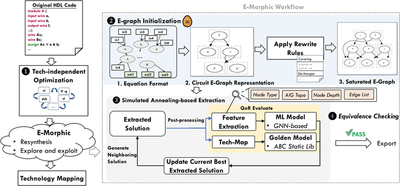

E-morphic further explores the use of e-graph in logic synthesis. It employs equality saturation for resynthesis after conventional technology-independent logic optimizations, enabling structure exploration before technology mapping. Powered by several key enhancements to the equality saturation framework, such as direct e-graph-circuit conversion, solution-space pruning, and simulated annealing for e-graph extraction, E-morphic not only improves the scalability and extraction efficiency of e-graph rewriting but also addresses the structural bias issue present in conventional logic synthesis flows through parallel structural exploration and resynthesis.
